Modular Servo Casing Chain
Explorations Dan Chen / October 9, 2017

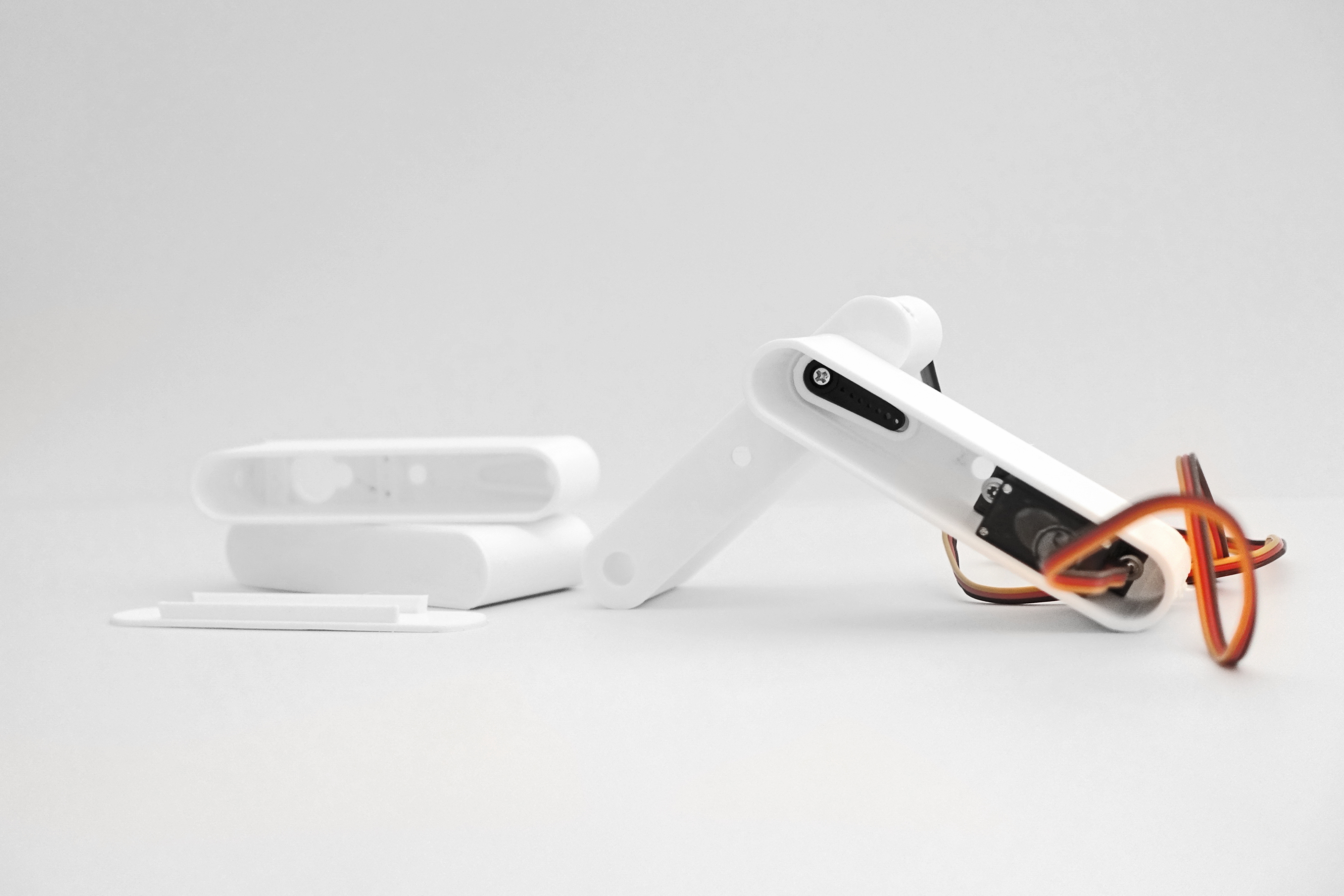

This modular servo casing allows you to use the same design/same part over and over again to create a robotic chain movement or loop. This allows for 2 degrees of freedom. I will be adding another axis in the future design.

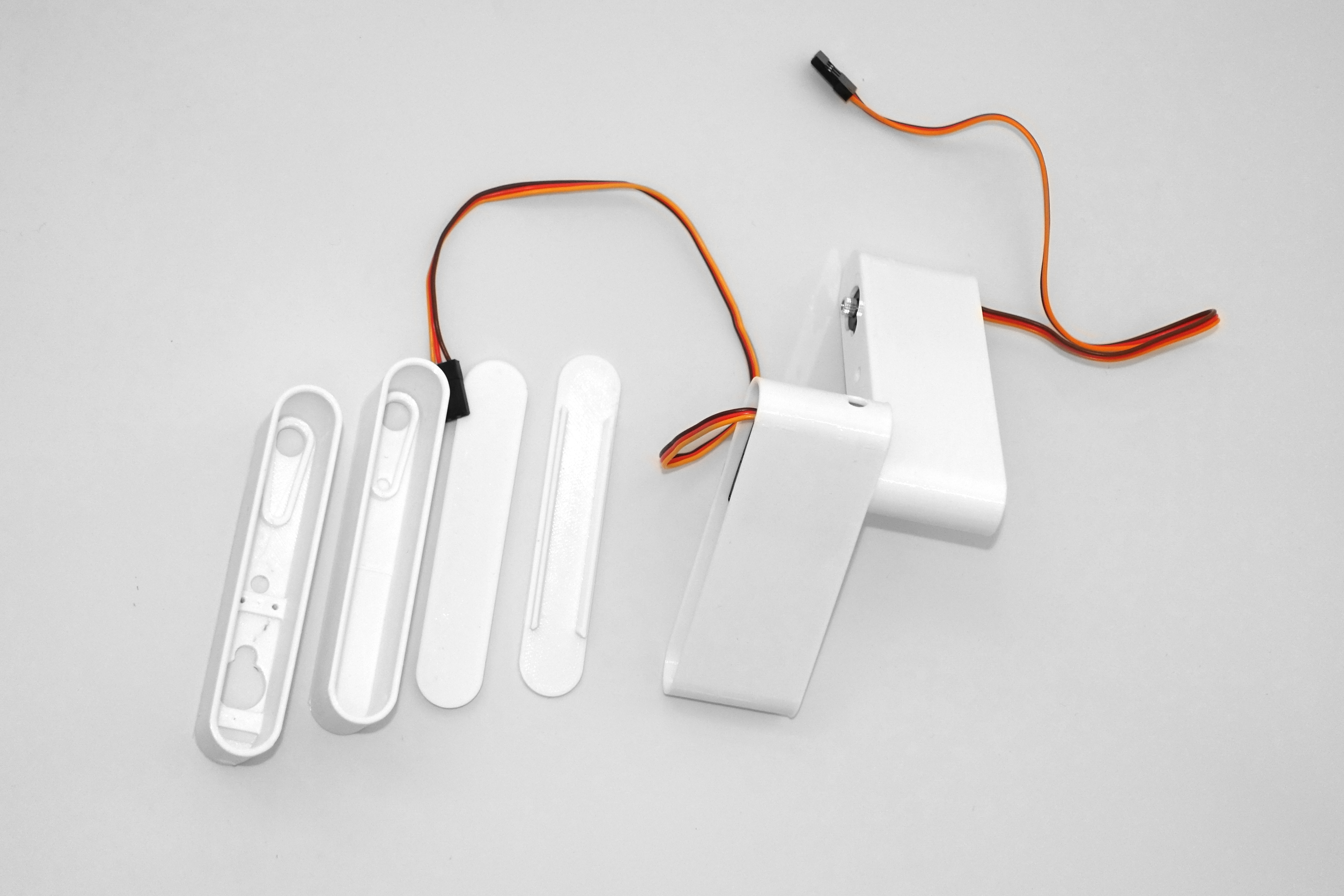

There are two openings for servo wires, and a lid for covering the servos. You can chain up as many servos as you need for your projects with the same body design.

I included the source file, so you can close the holes or create new holes for the first and last modular for your robotic project.

Download STL & Fusion 360 Source File



https://skfb.ly/69REI

https://skfb.ly/69REL
