Explorations Dan Chen / December 8, 2015

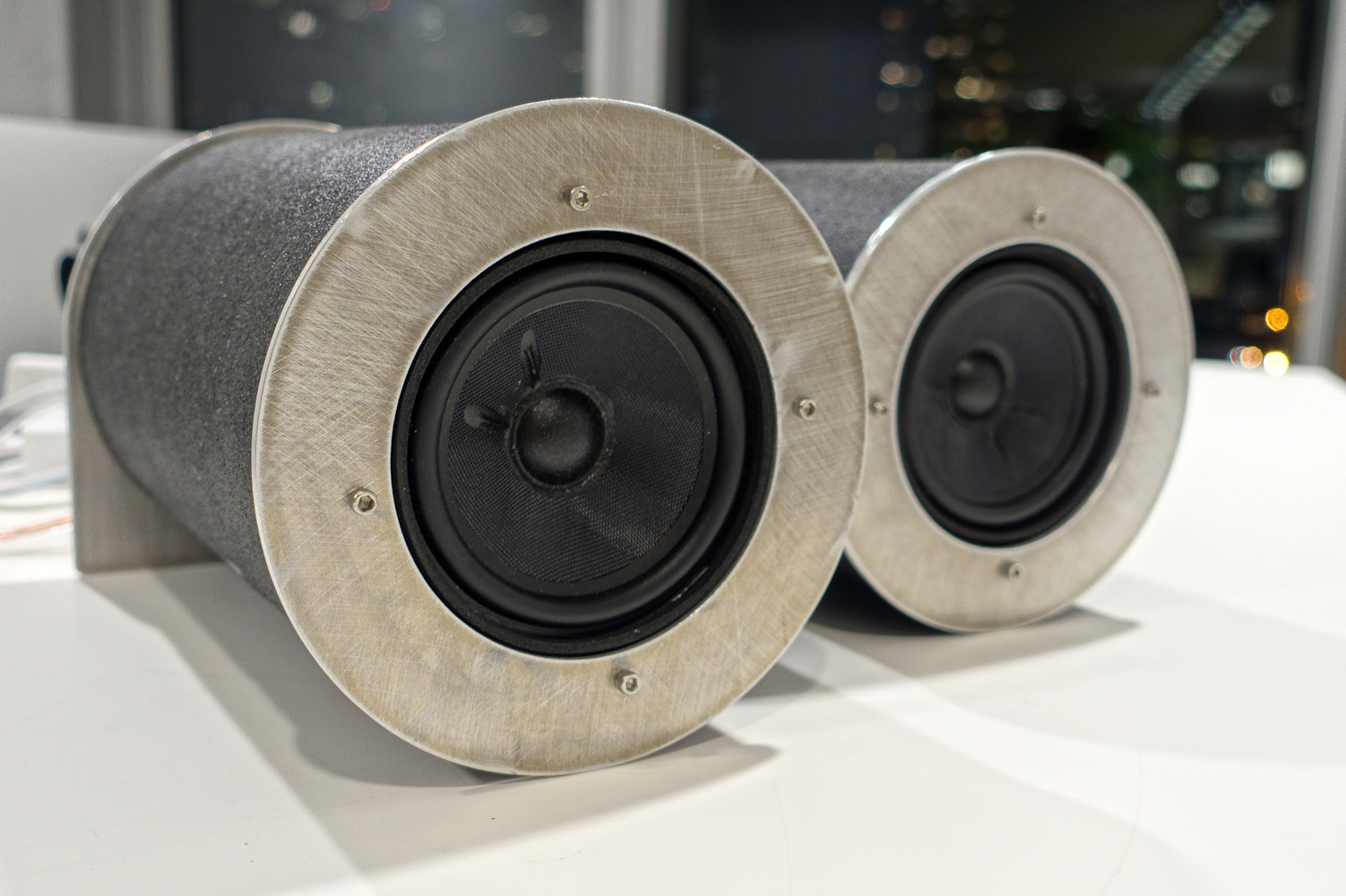

Denim and Burlap are great composite materials for my cannon speaker project. It produces rich base and clear high tones, and also has a nice surface finish. It’s both light weight and strong.​

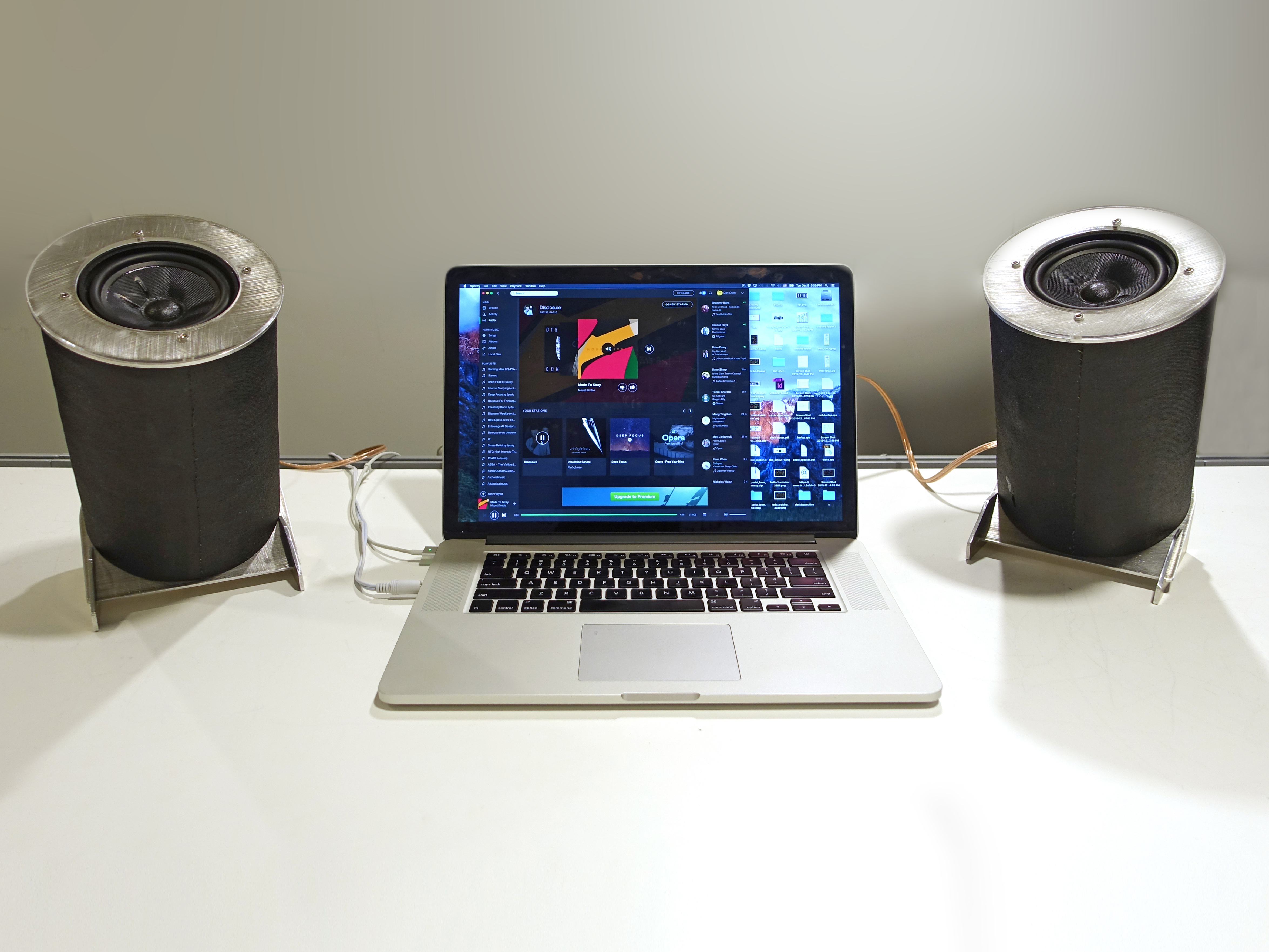

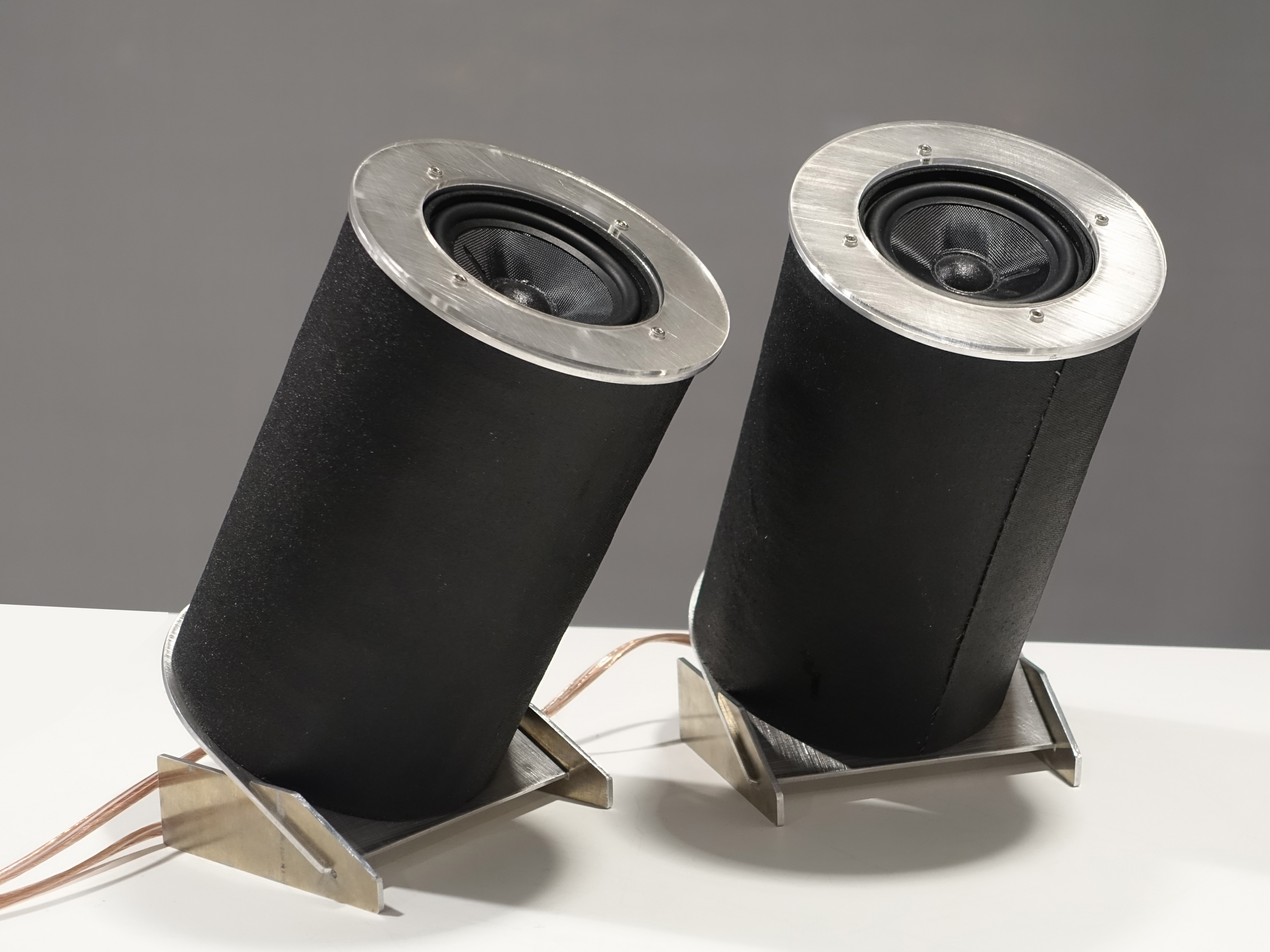

I designed my speakers so you can use it laying flat or pointing up using the stand like a cannon or to save desk space.

I designed the inner audio air channel based on the iPad Pro and other speakers in the market. How the audio travel inside of a speaker plays an important rule in reproducing the sound.

I used aluminum for many parts of the project, but you can cut them out using laser cut acrylic or band saw wood.

DSC09913DSC09895

DSC09917

DSC09882

DSC09852

DSC09904

DSC09887

DSC09799

DSC09865DSC09779 DSC09781 DSC09800 DSC09865 DSC09879 DSC09885 DSC09906



Denim & Burlap Composite

Download all the cut files here All Cut Files & 3D models

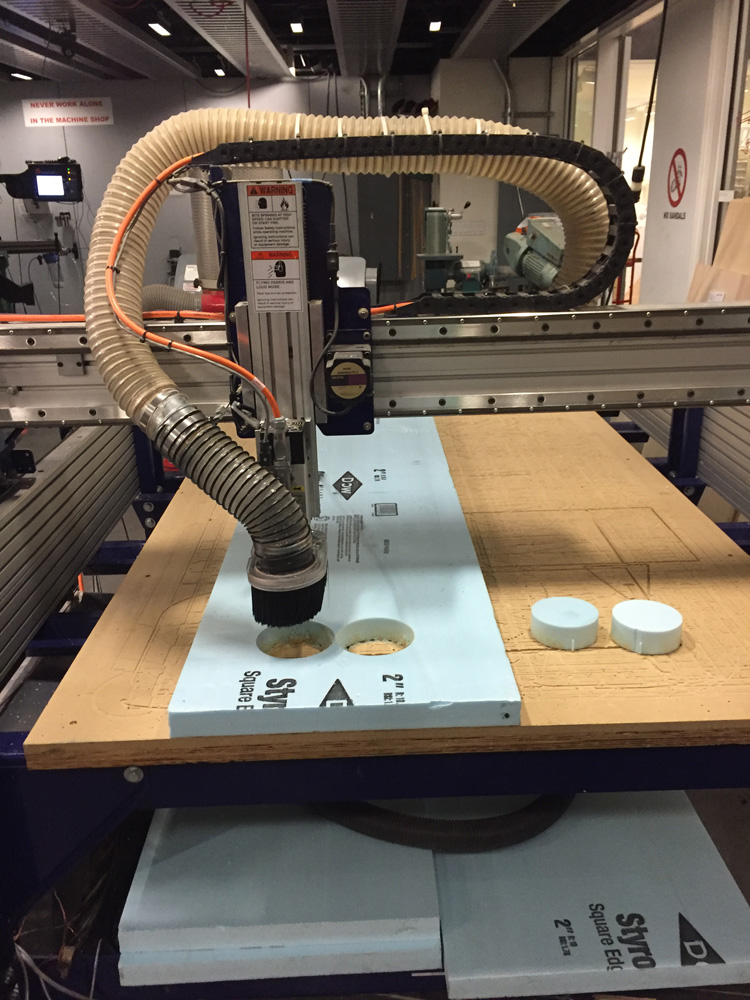

​I use shopbot to cnc my shape with the foam, but you can use simple PVC pipe for the speaker body.

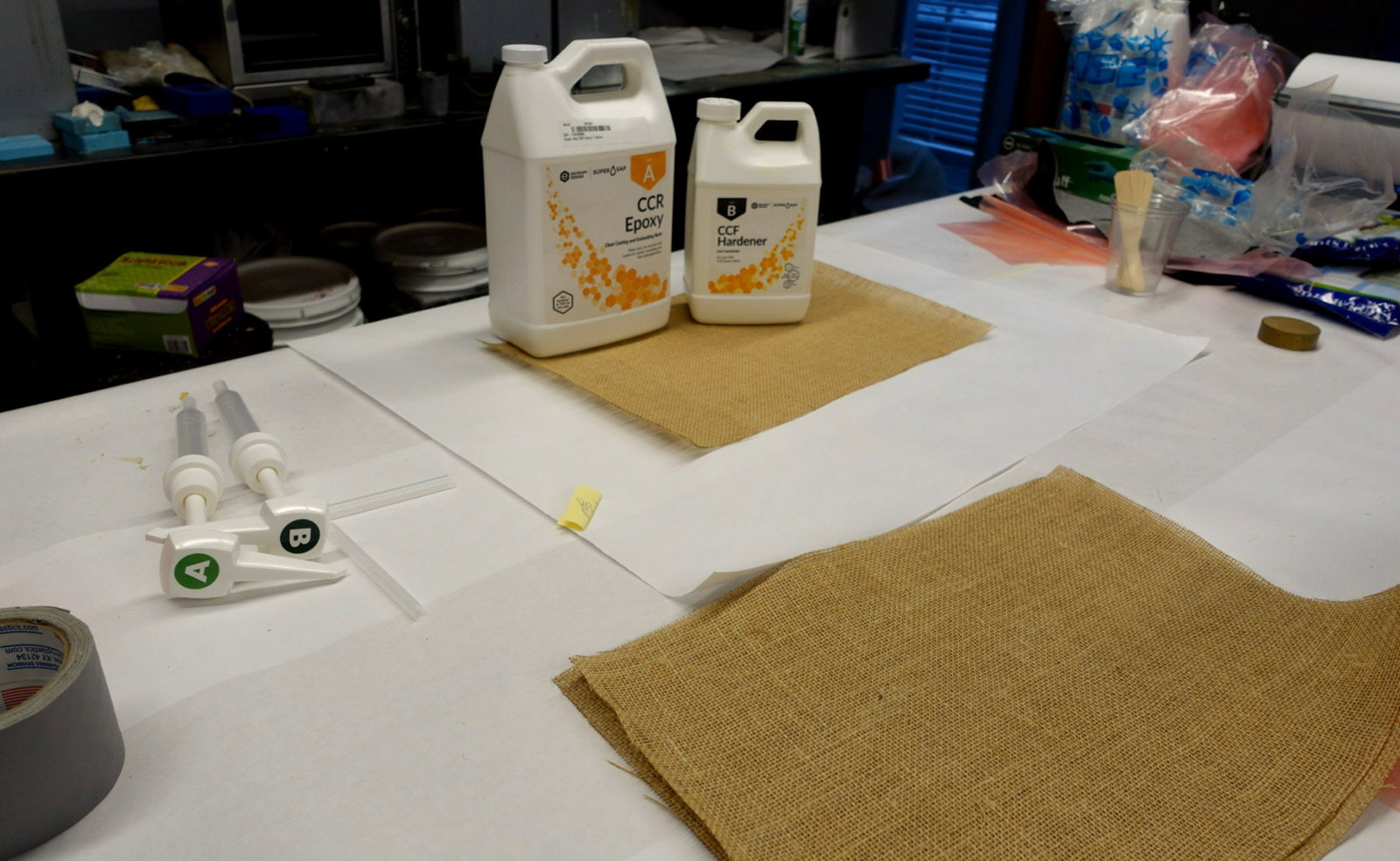

I used entropy resin, because it’s mostly natural. I used nylon film (the pink stuff) as mold release.



IMG_0994

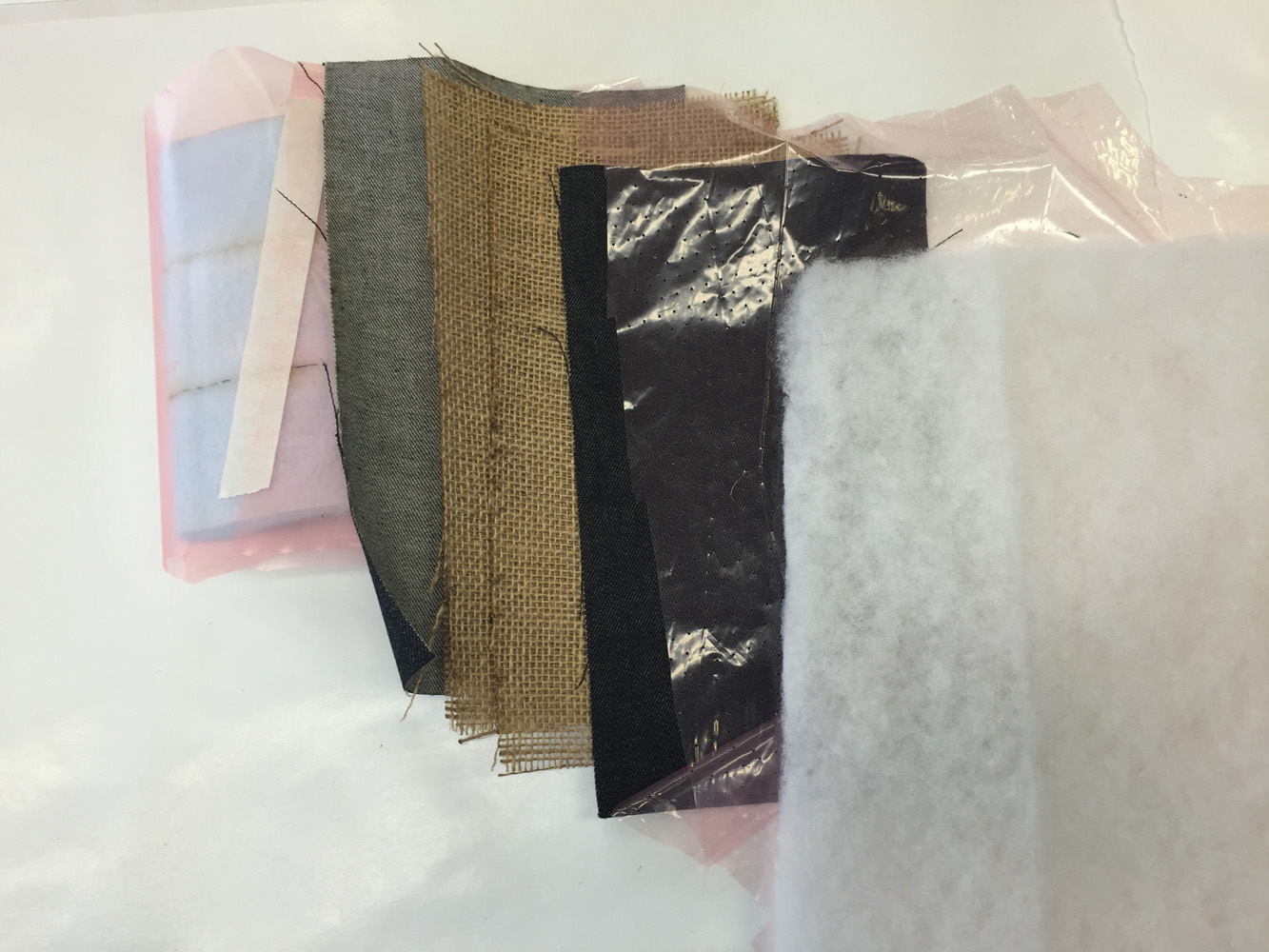

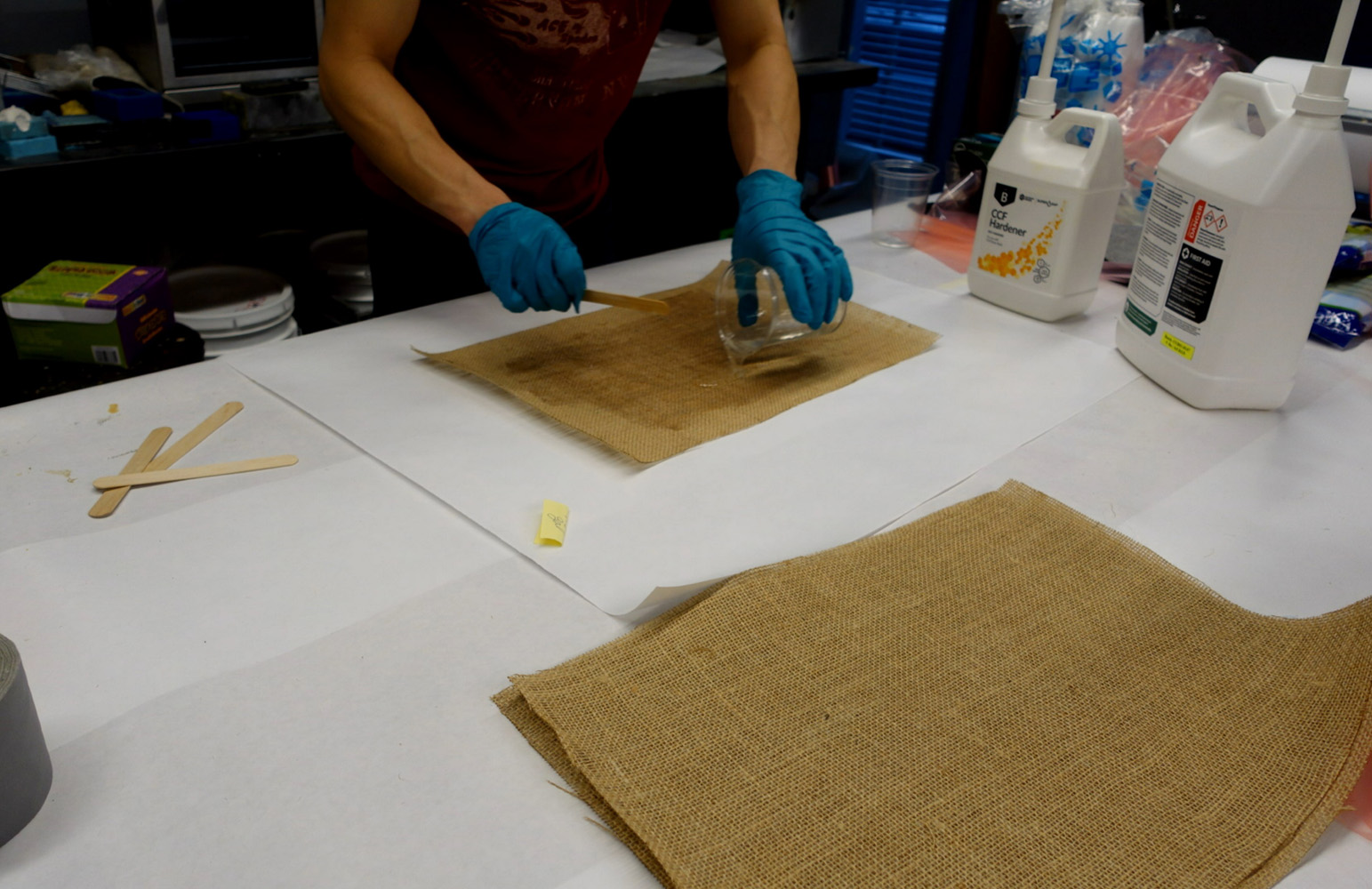

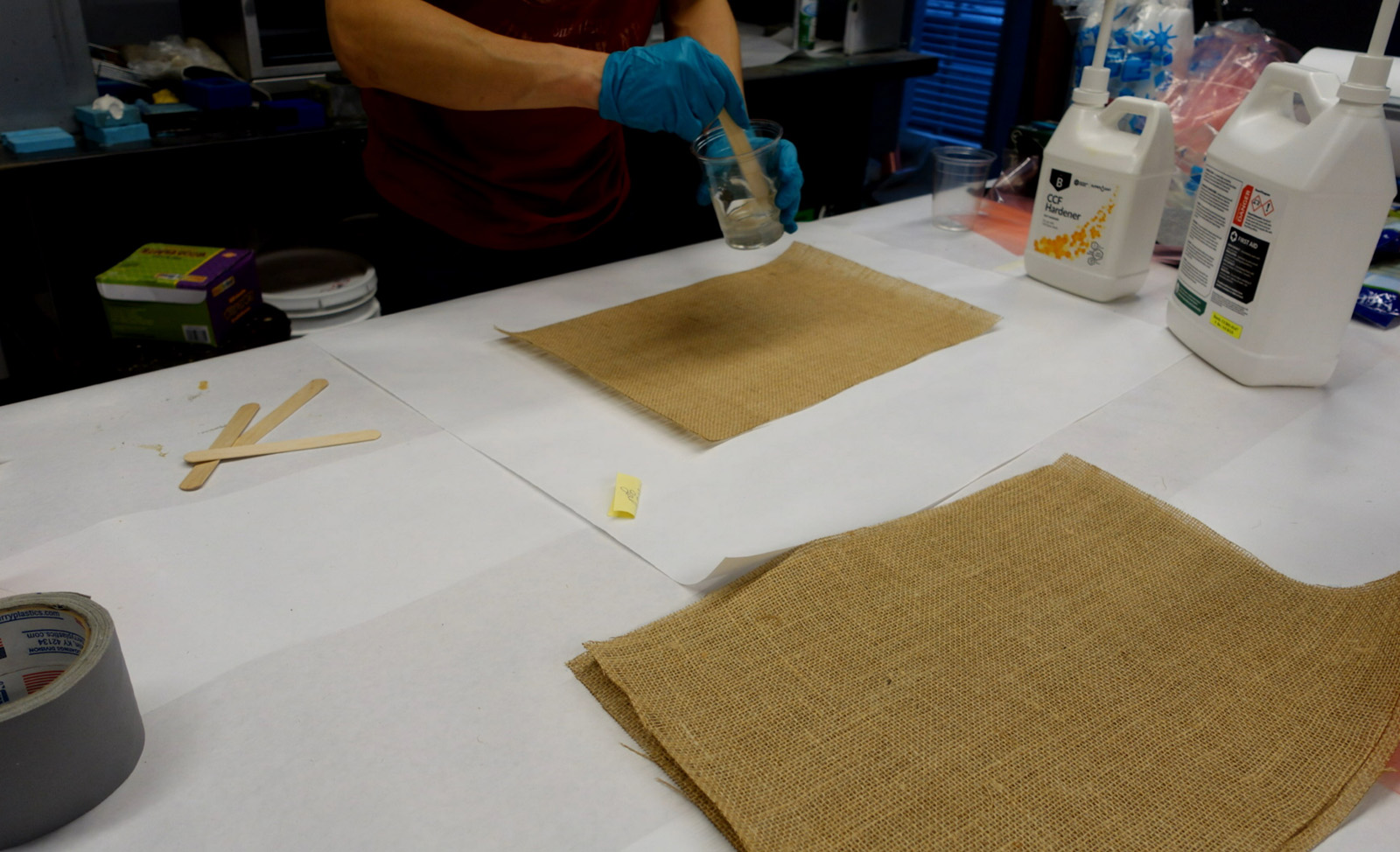

Here is layer by layer layout, from inside out

You want to make sure you wrap them real tight, like sushi roll. the resin should whole the layers in place, even without compression from the outside.

IMG_1006

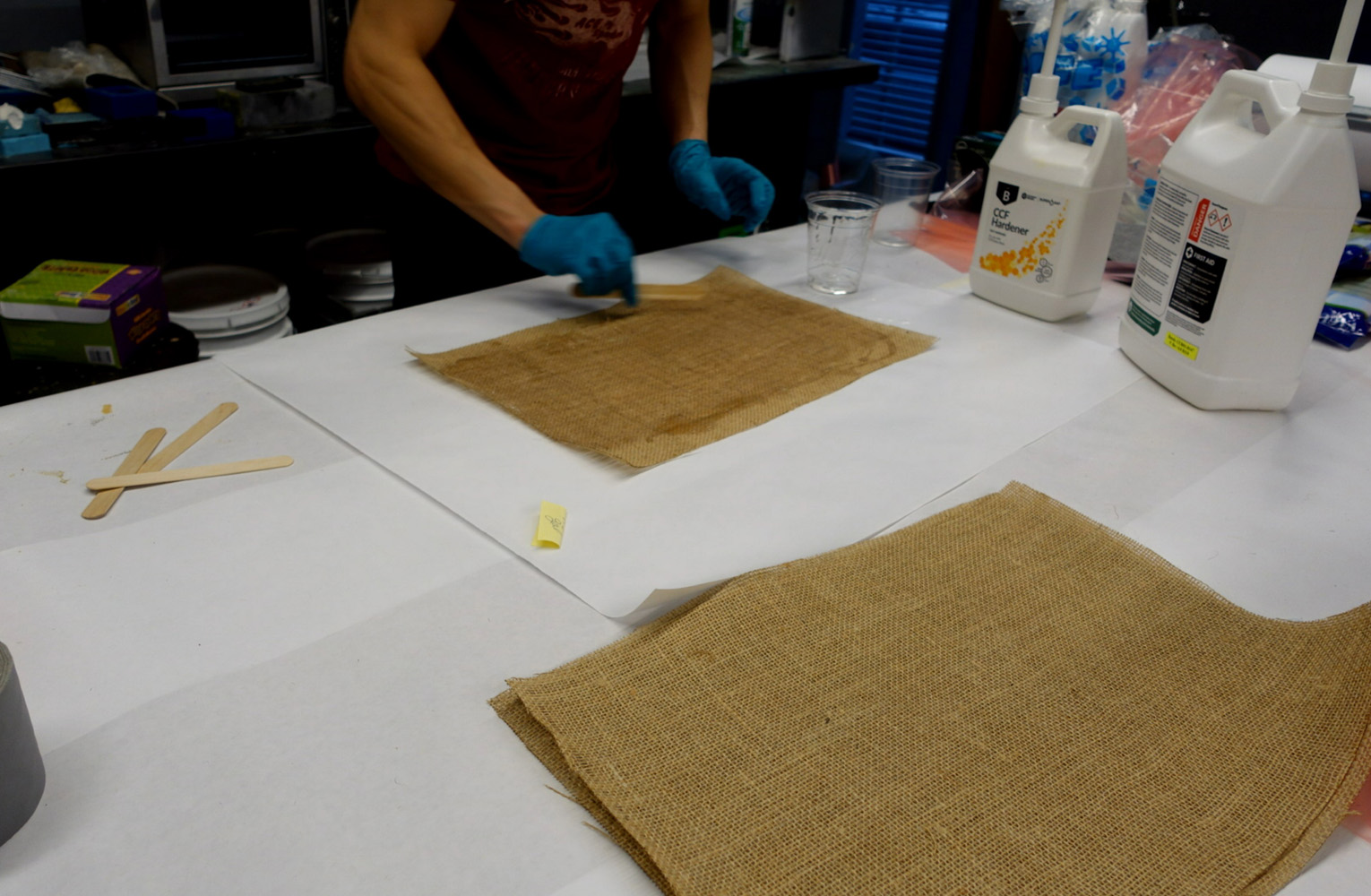

Screen Shot 2015-12-08 at 7.06.44 PM Screen Shot 2015-12-08 at 7.06.59 PM Screen Shot 2015-12-08 at 7.07.27 PM Screen Shot 2015-12-08 at 7.07.35 PM Screen Shot 2015-12-08 at 7.07.45 PM

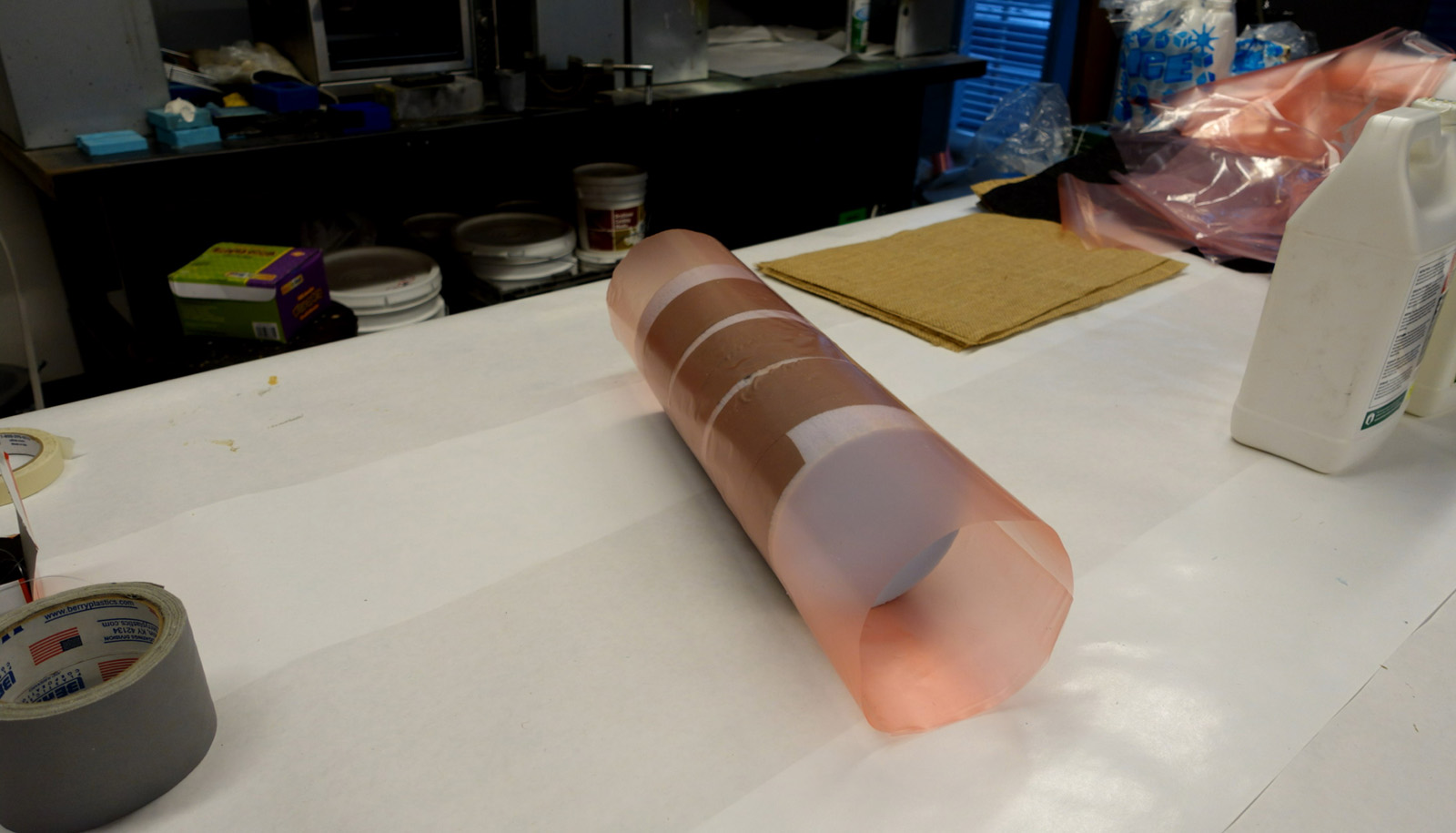

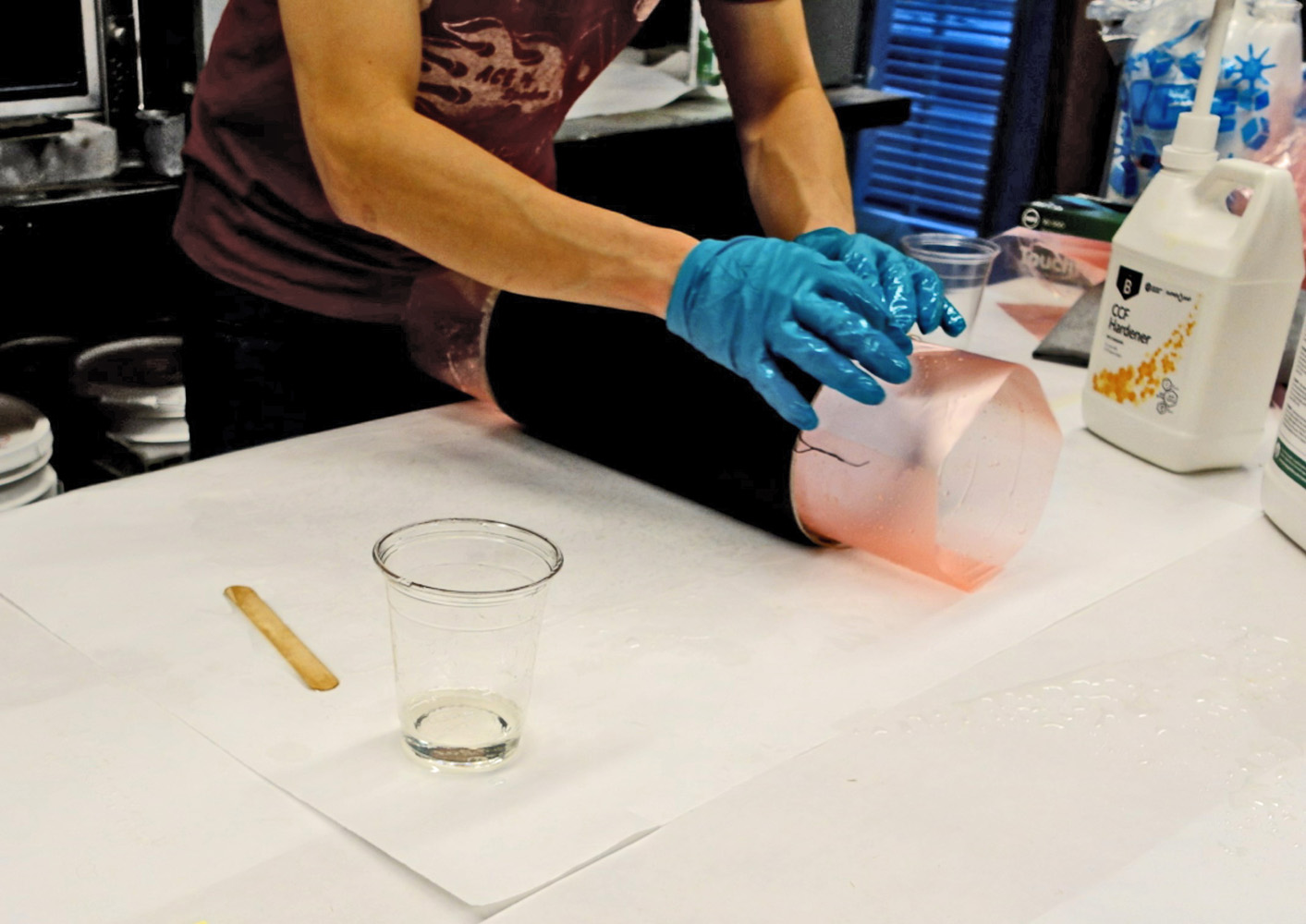

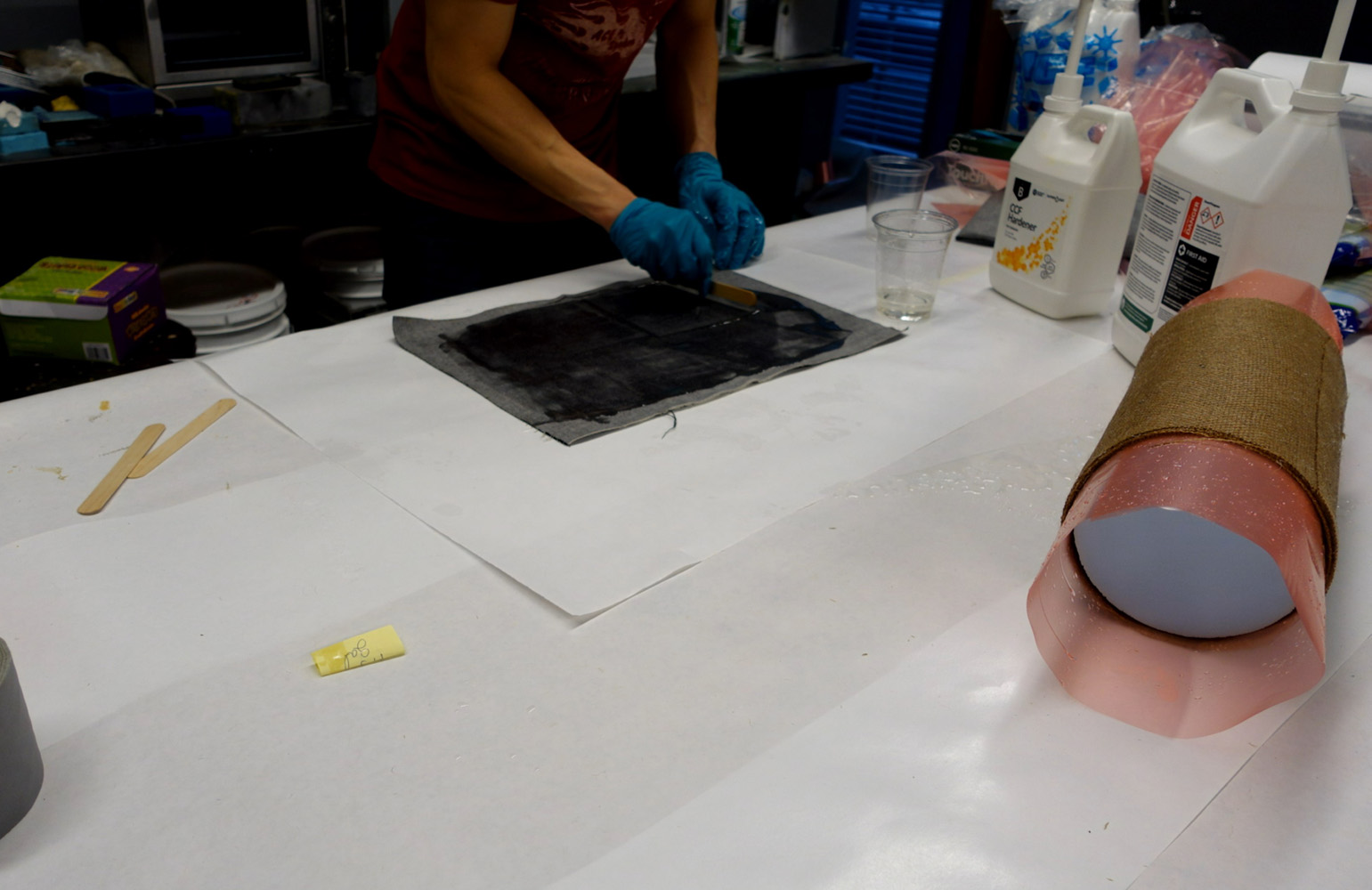

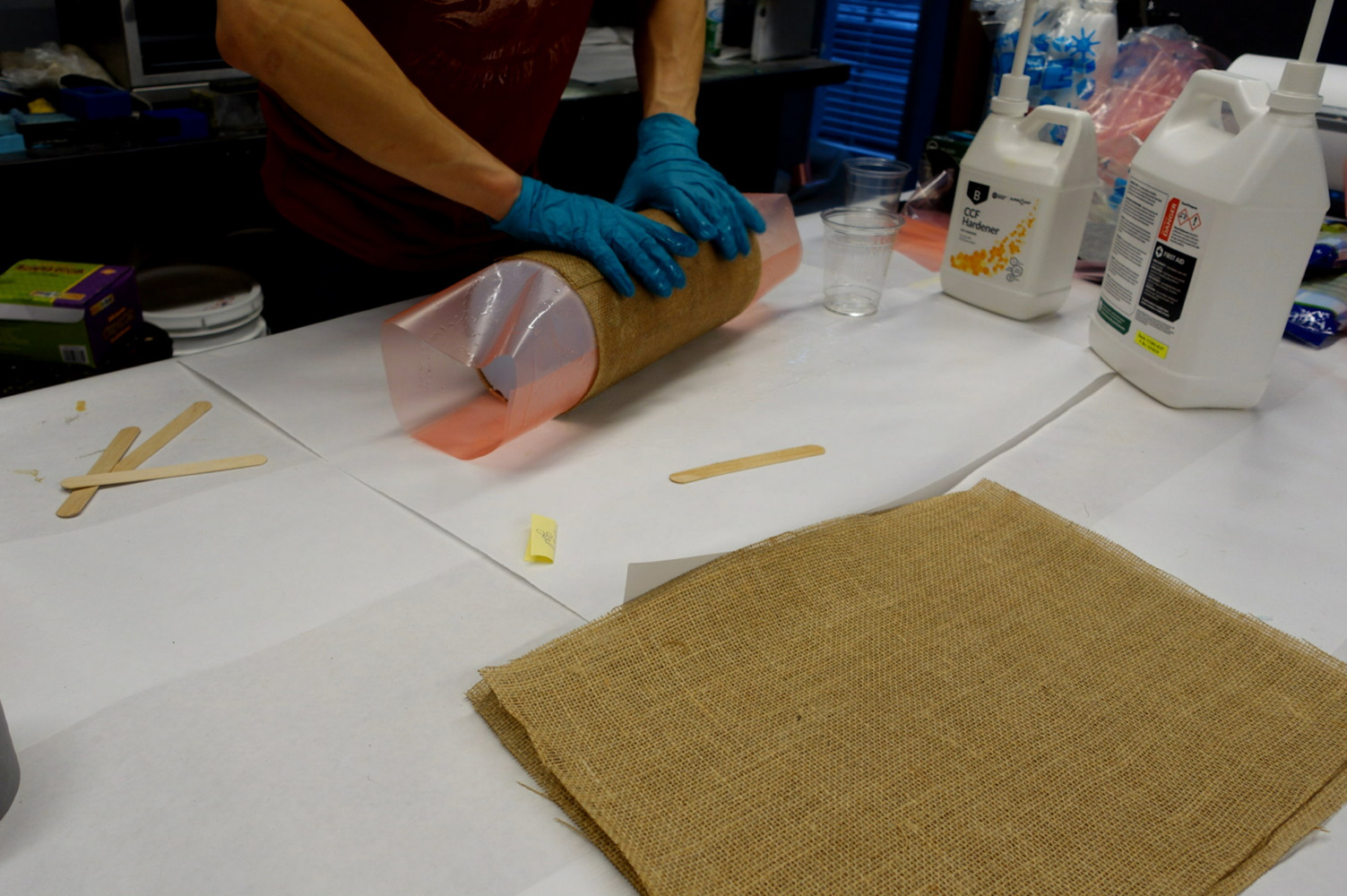

Roll it real tight.Screen Shot 2015-12-08 at 7.08.00 PM Screen Shot 2015-12-08 at 7.08.13 PM Screen Shot 2015-12-08 at 7.08.26 PM

Let the resin drip, you might want to flip it around after an hour.

IMG_1015

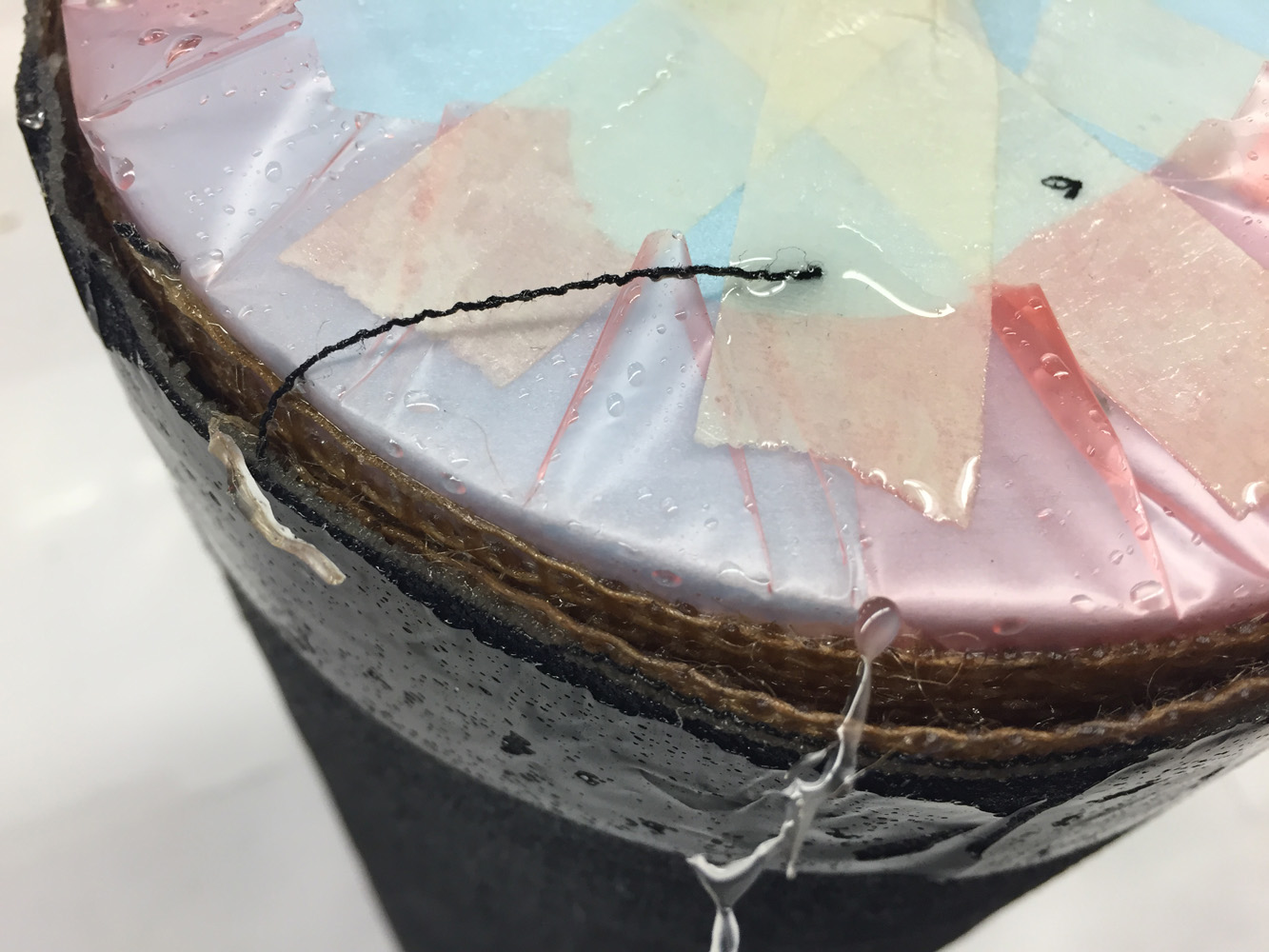

Once the resin is cured (24-48 hours), you can pop the foam out from the inside. ​

IMG_1008

DSC09763



Assembling the Speakers

You will need to use the attached file to cut out a few more parts​. There are two acrylic inner plates that has teeth around, use the outer acrylic plate as spacer and hot glue the most inner disks (the one with teeth) from the inside. You can then align all outer plates and install audio jack to the back acrylic plate. I used aluminum as face disks for front and back, then cover them up again with acrylics to have that nice clear metal finishing.

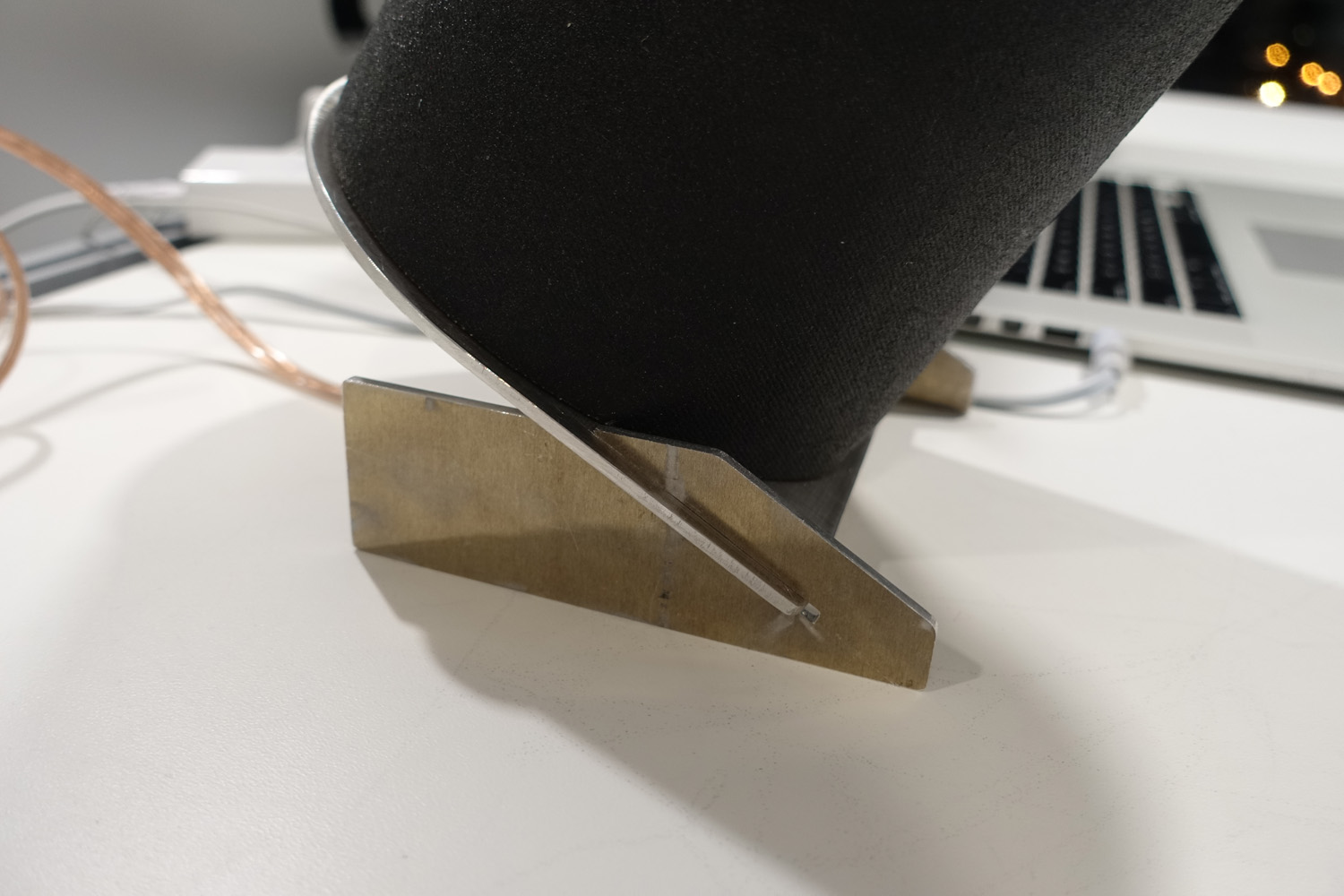

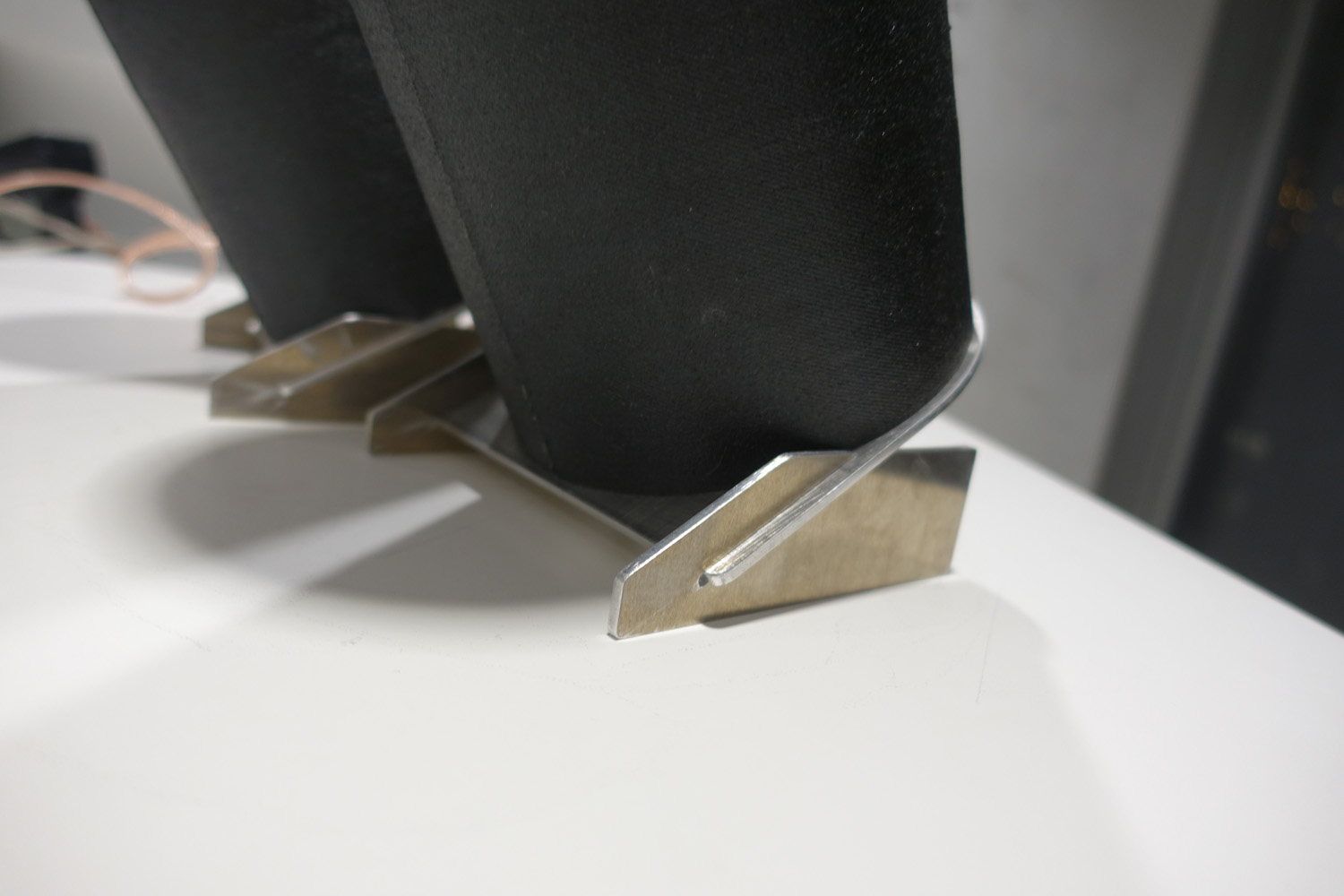

The cut file also includes the aluminum stands, you can also cut this out of a thick layer of acrylics.

Dan Chen - Speakers cutouts

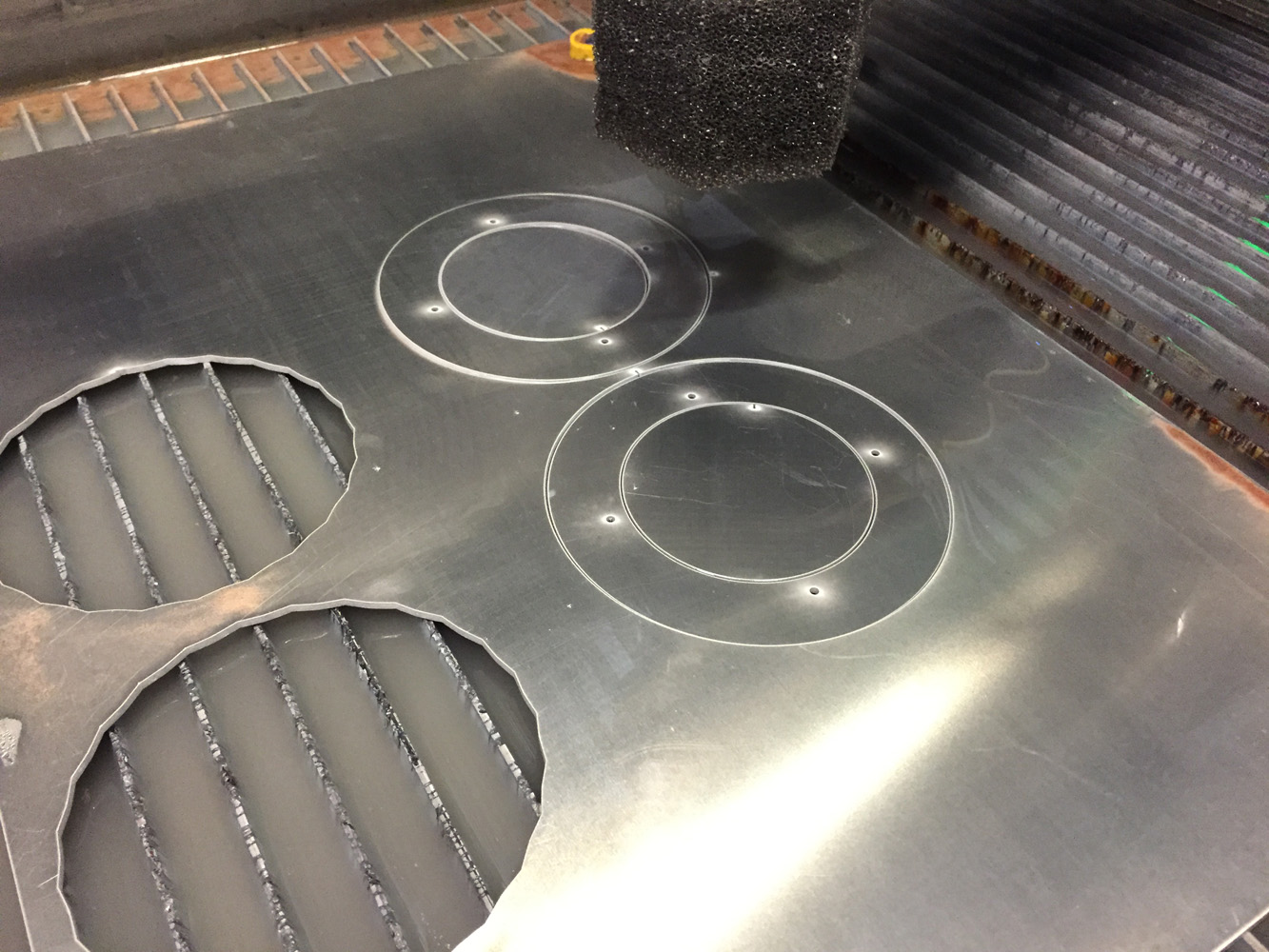

Water Jet aluminum.

IMG_1051

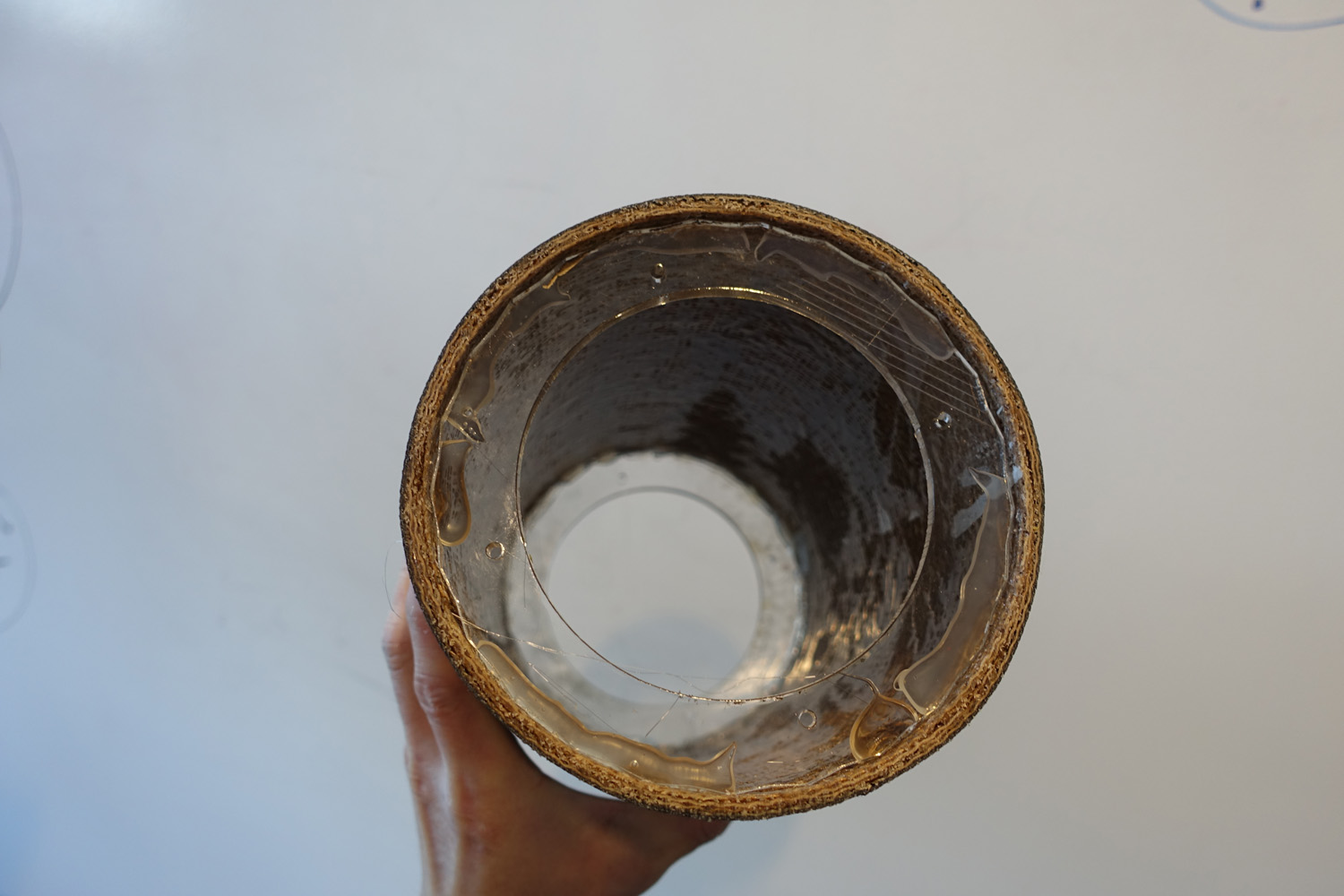

Inserting and hot glueing the inner plate, maker sure it’s one plate thickness in.

DSC09774

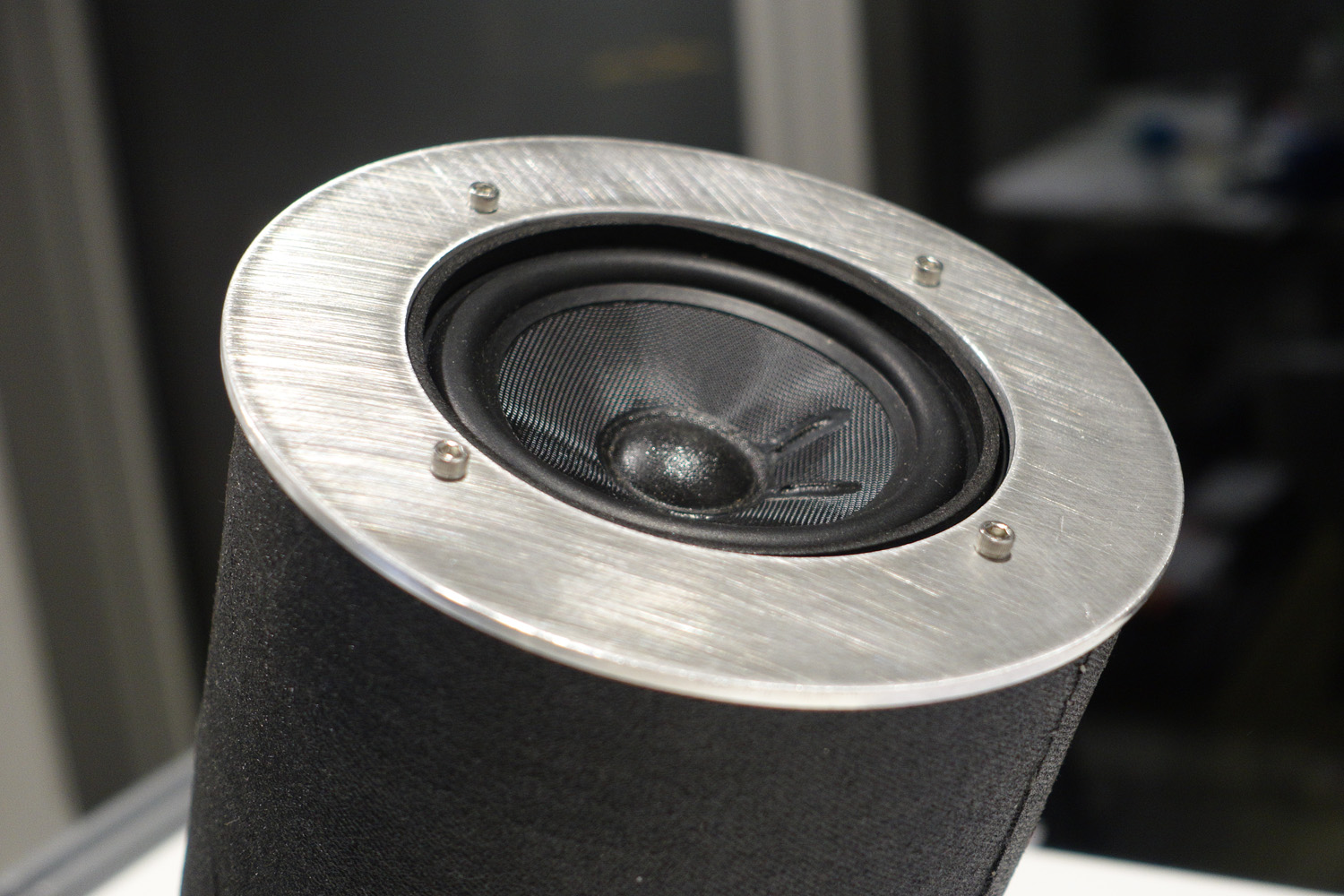

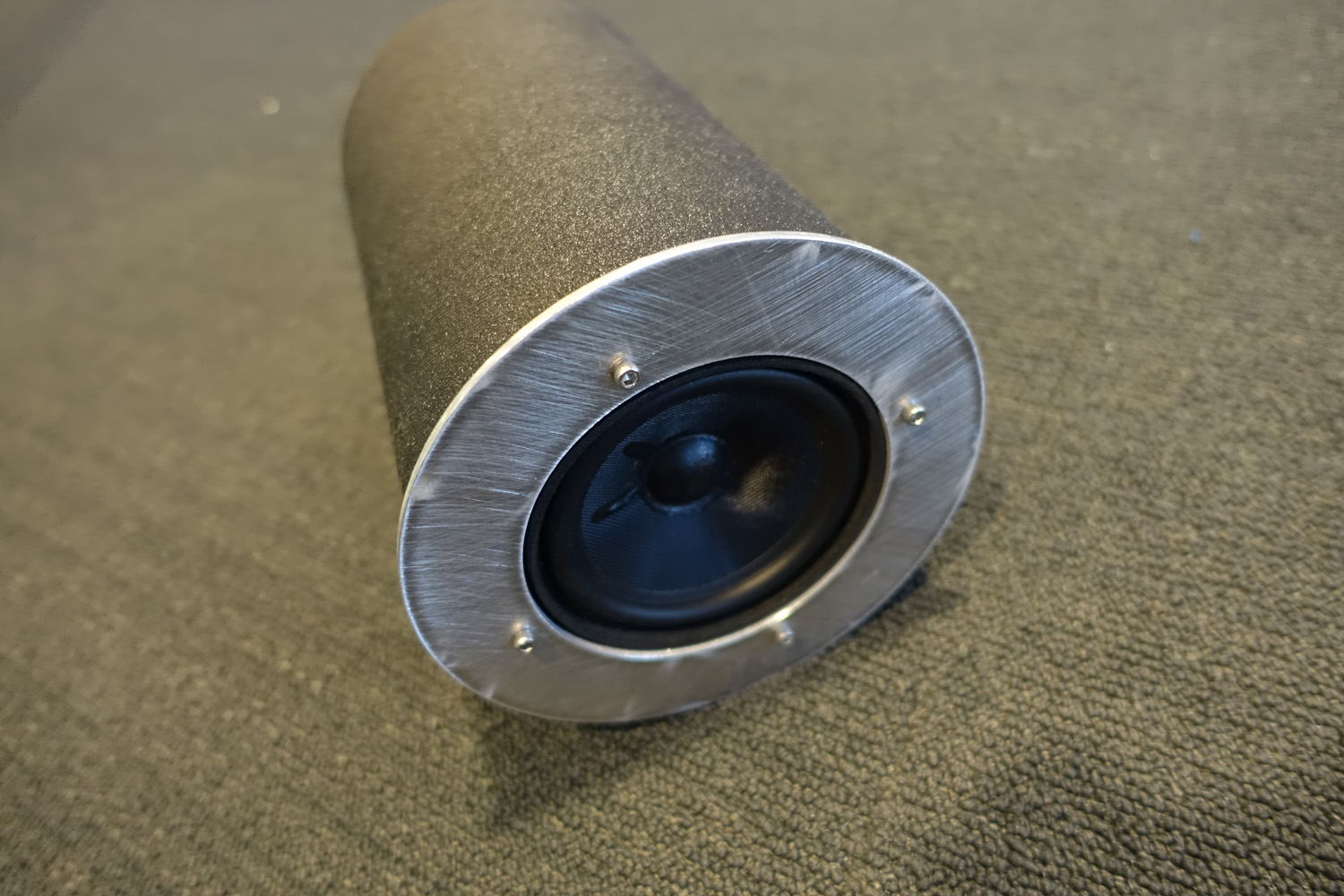

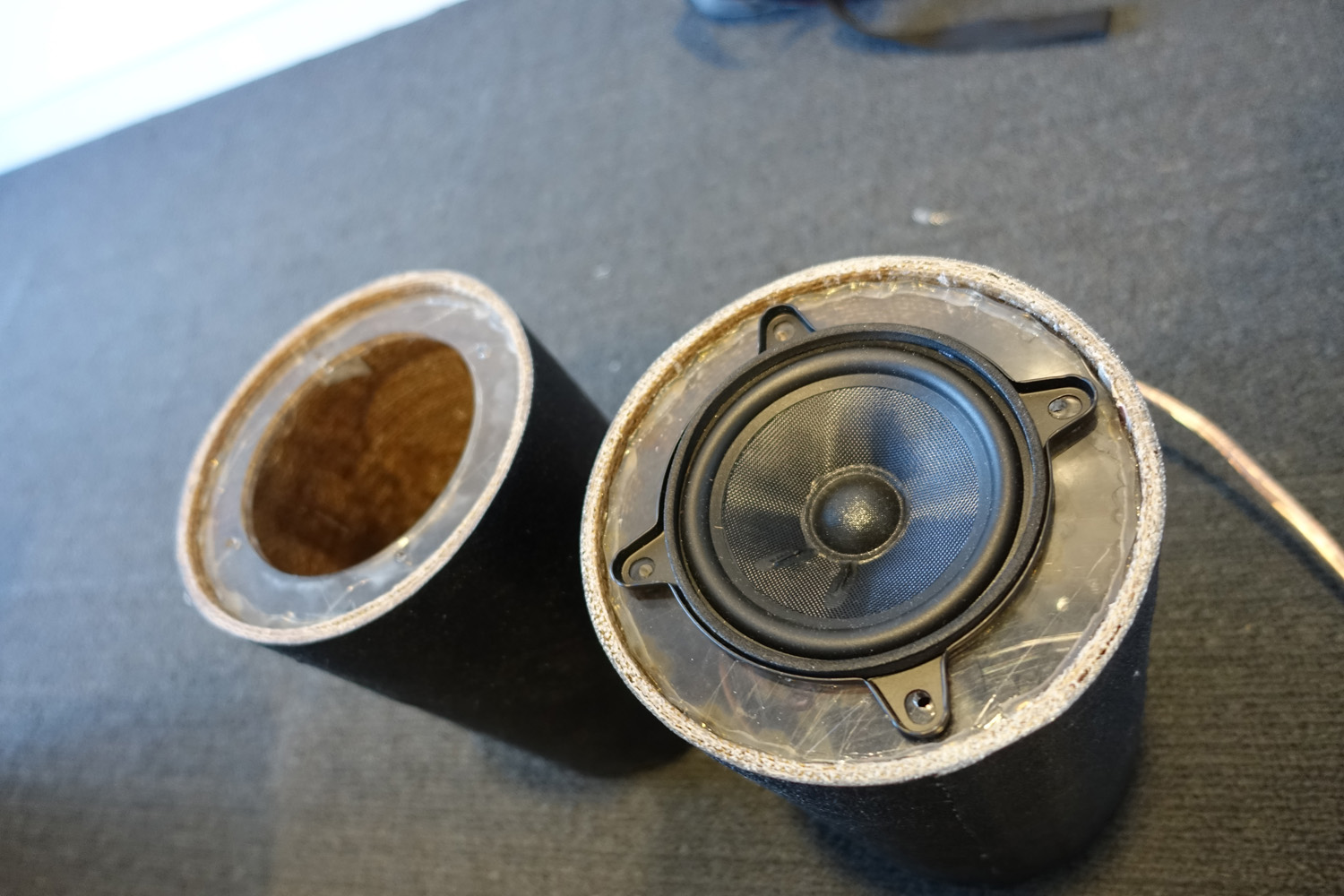

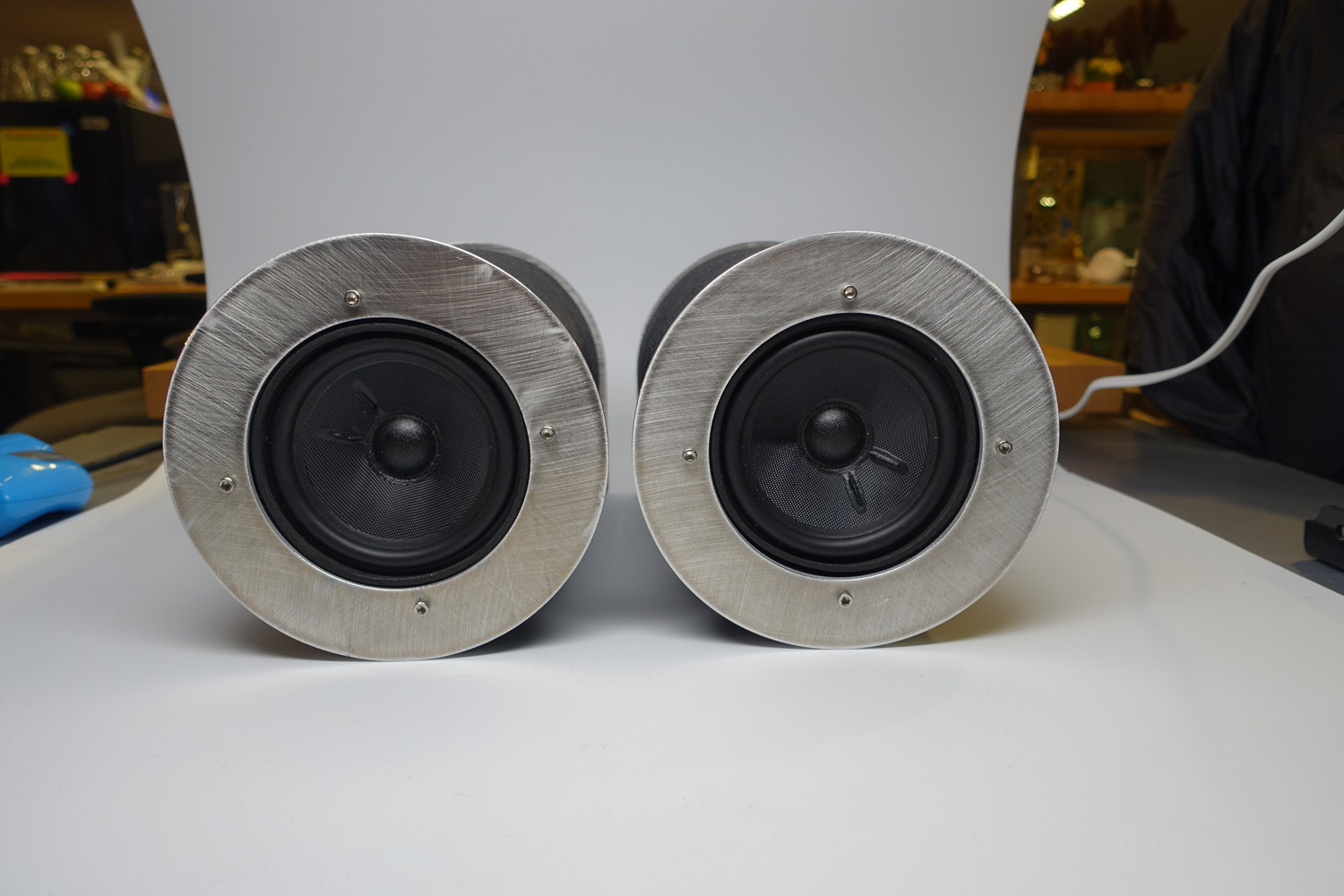

You will sandwich the speakers with the outer aluminum plate using 4 screws.

DSC09777

DSC09783

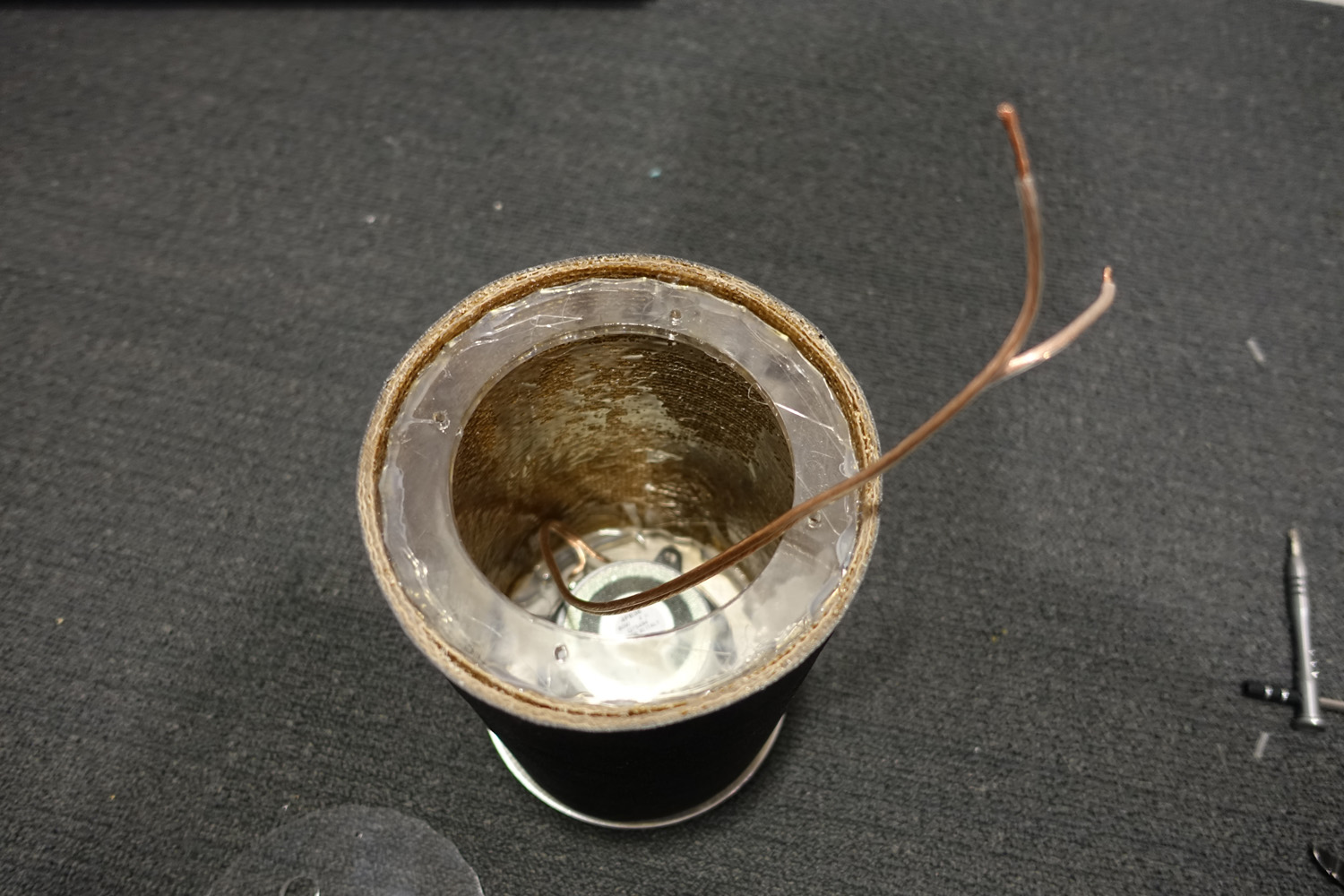

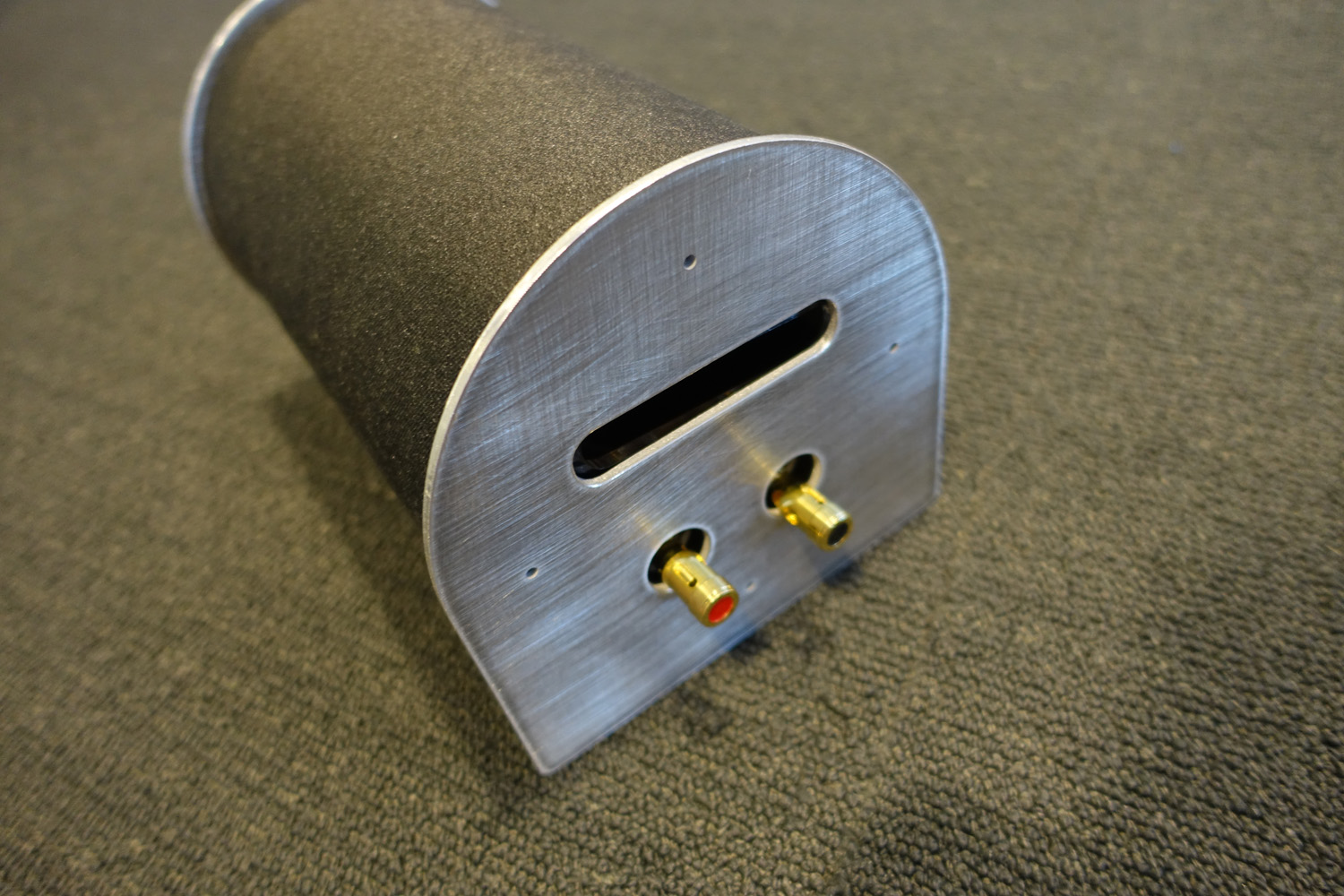

Install audio jacks.DSC09787

DSC09780

DSC09782
