Mini Loom
Explorations Dan Chen / August 5, 2015

Based on Samantha Bittman’s mini loom design I made the Fab Loom stronger, bigger with the inter lockable rings for different style cones. You can extend the loom or modify the corn using template below or just last cut them as is.

Download 8X8 Loom
DWG 8×8 Loom
EPS 8×8 Loom
SVG 8×8 Loom

Download 18X8 Loom
EPS 18×8 Loom

Contribute with Github

Instructions

You will need
Access to a Laser Cutter (cuts 24″ x 12″ )
24″wide x 12″height  1/8 thick plywood

Laser cut all parts using the EPS file.

Color Mapping
Black: Cut all the way through.
Red: Etching



DSC06854

Start with the base

DSC06857

Make sure the hooks faces inwards.

DSC06858

Push the hook inwardsDSC06859



DSC06861

Now for the two other sides, push the finger joins down on both sides.

DSC06860

DSC06862 DSC06863

Lock the cone together

DSC06864 DSC06865 DSC06867 DSC06868 DSC06869

That’s it!

DSC06871

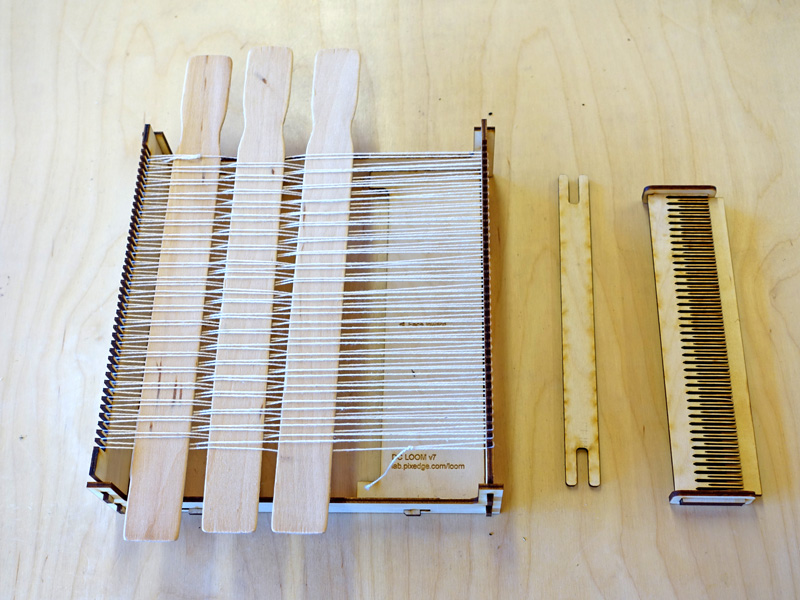

DSC06986 DSC06994 DSC06990
